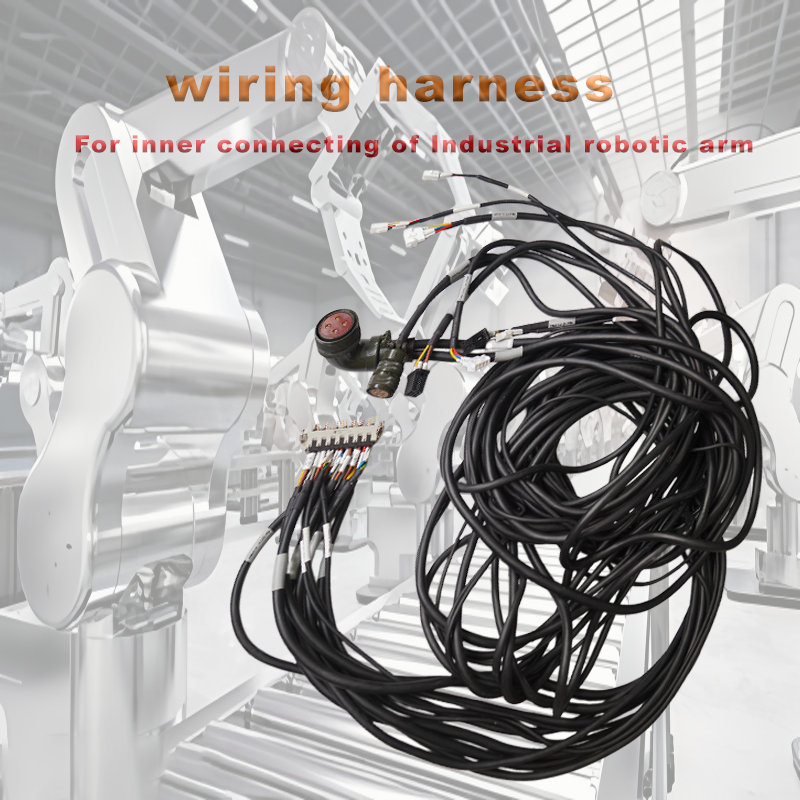

Industrial equipment connection harness robotic arm male and female harness

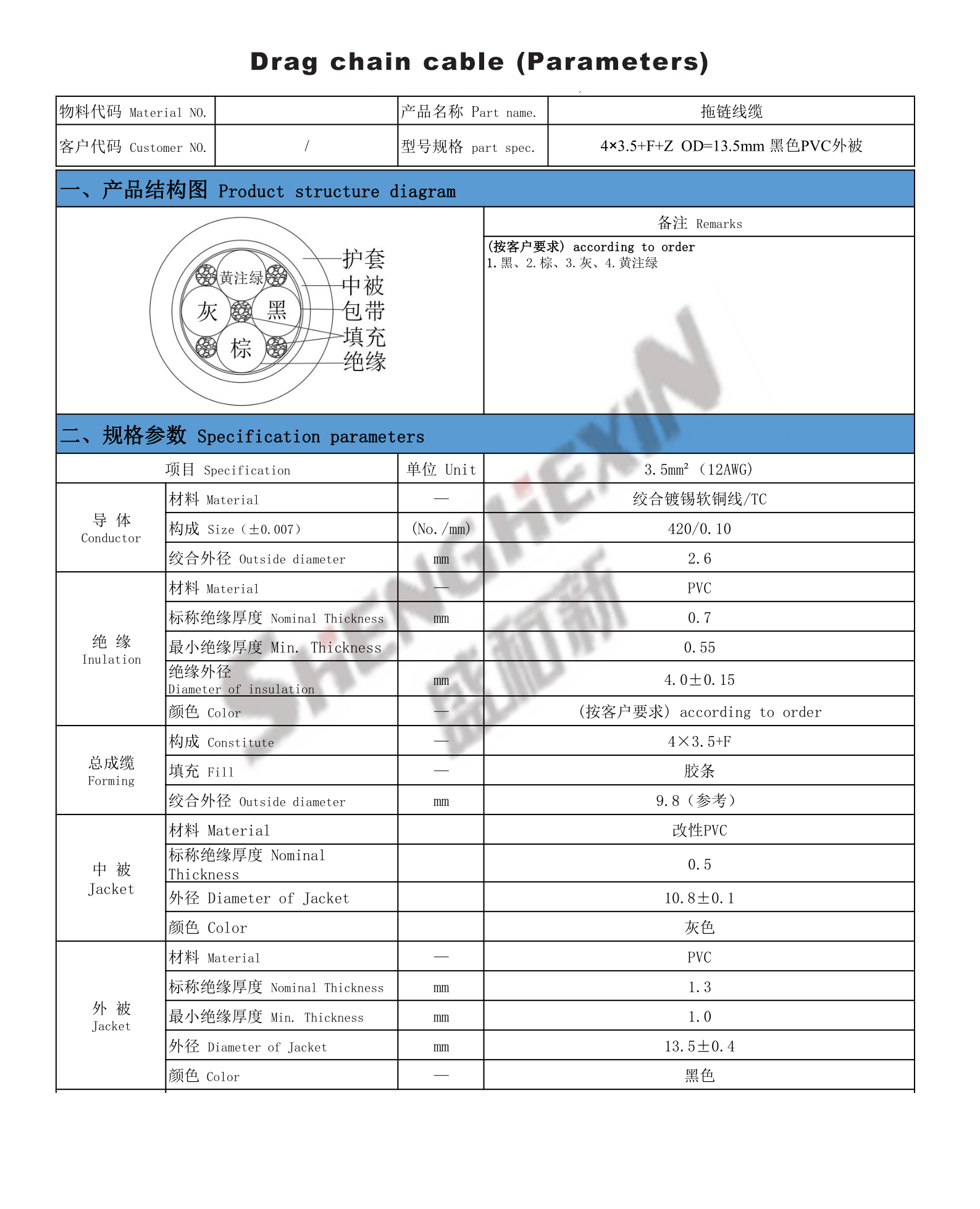

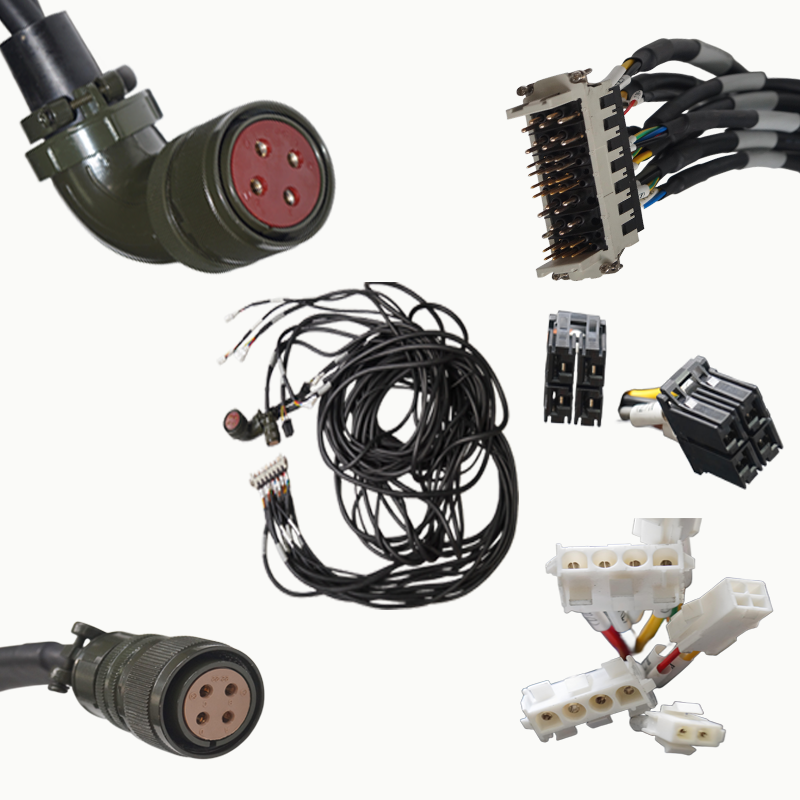

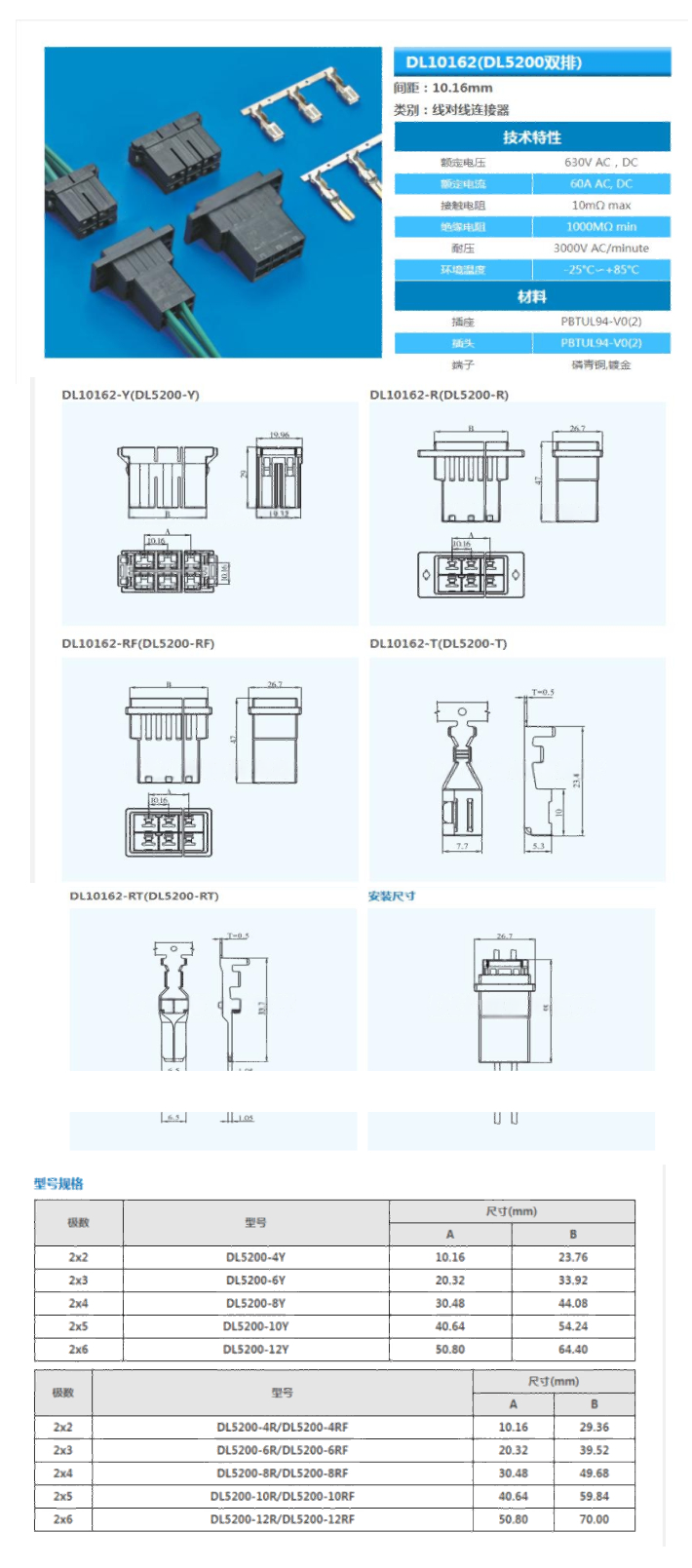

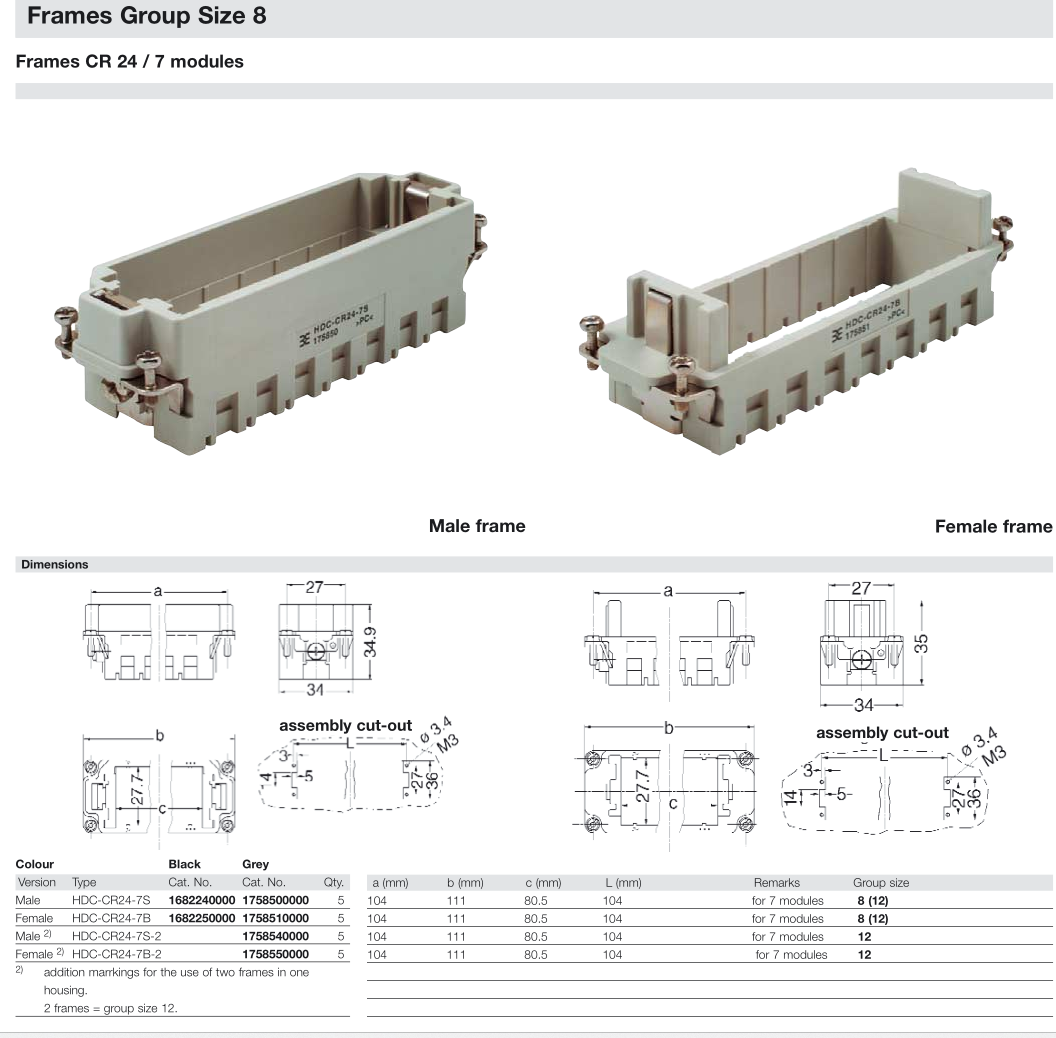

This high – performance wire harness features a variety of top – quality connectors. It includes Weidmüller frame group size 8 with frame CR 24/7 modules connector, MS MIL – C – 5015G waterproof connector, DL5200 double – row wire – to – wire connector with PBT UL94 – V0(2) socket and phosphor bronze gold – plated terminals, as well as ordinary nylon socket connectors with phosphor bronze terminals.The harness is equipped with multiple drag chain cables, ranging from 14 – 26AWG in gauge and 6 – 10 meters in length. Made of stranded tinned soft copper conductors, PVC insulation, filler strips, braids and tapes, it has a tested lifespan of ≥10 million cycles, an operating temperature of – 10℃~+80℃ and a rated voltage of 300V
