Factory M16 M12 M8 Waterproof Cable assembly harness IP67 2-8 pin Connector M16 Aviation plug

Short Description:

M8, M12, M16 waterproof connectors are circular connectors with thread sizes of M8, M12, and M16 respectively. They feature high – quality copper contacts for low resistance. Their durable copper alloy housings ensure IP66 – IP68 protection, ideal for industrial, automotive and outdoor applications.


Product Detail

Product Tags

一.M8 Connectors

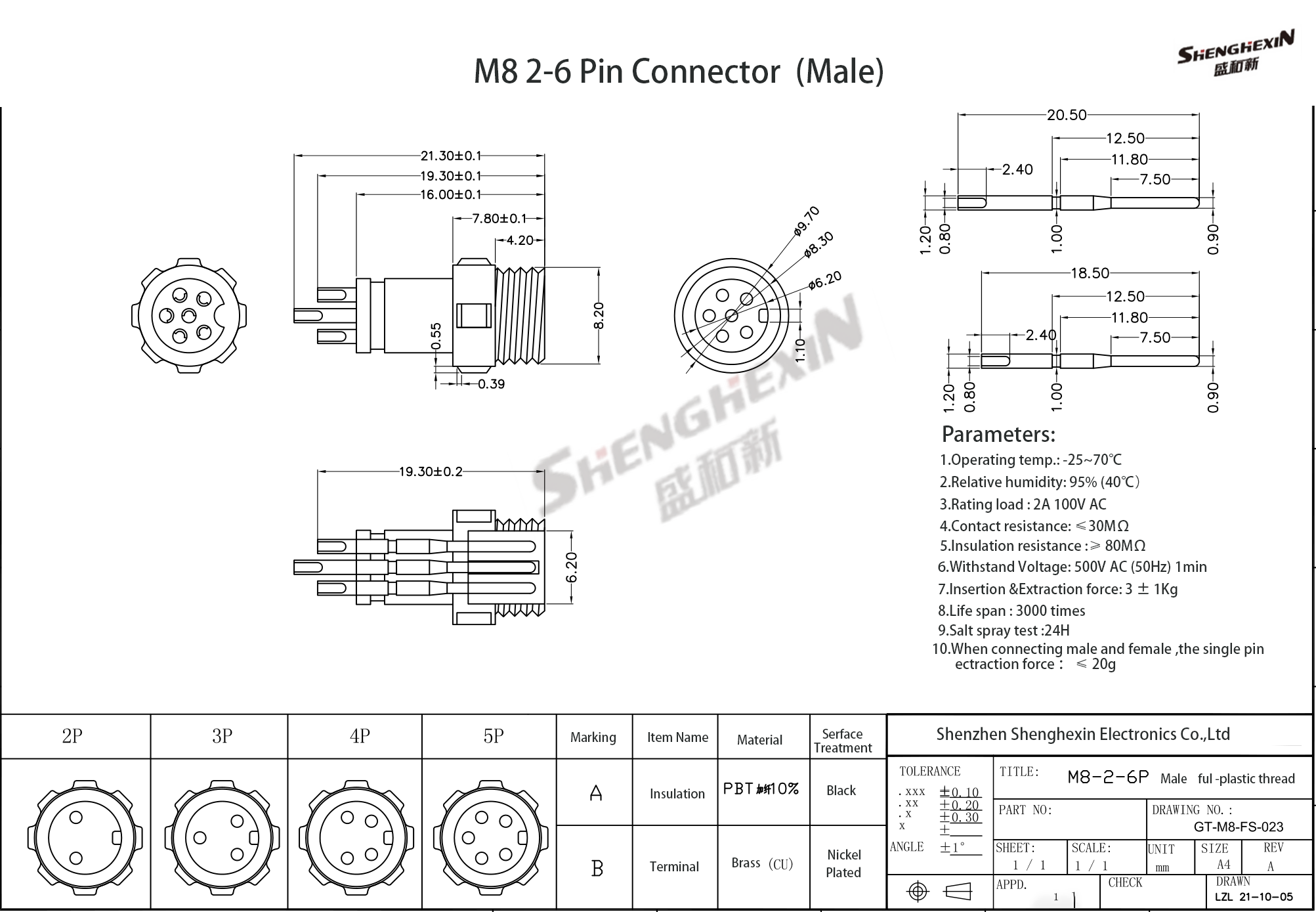

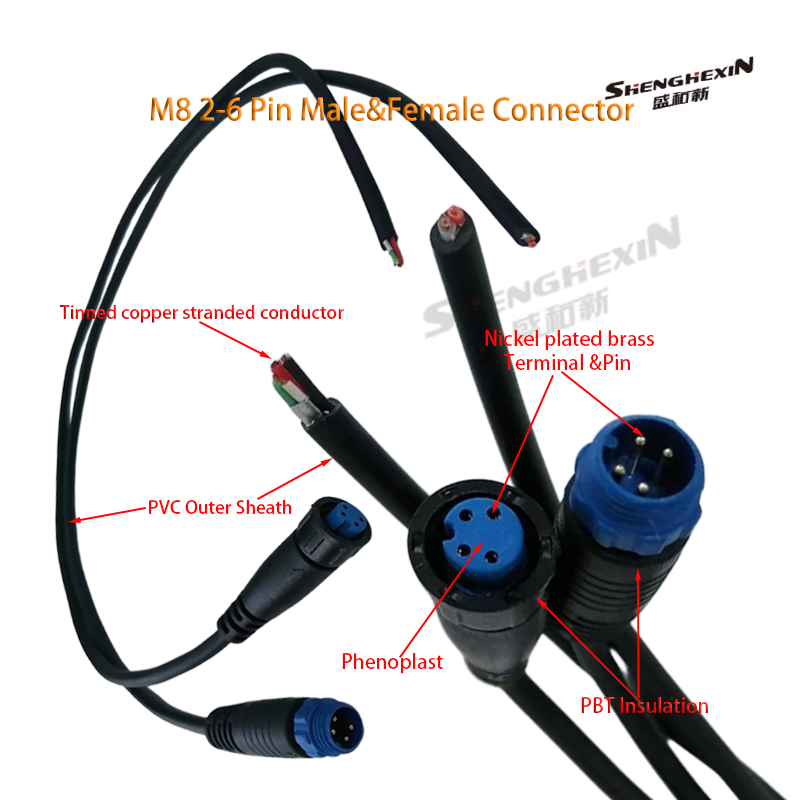

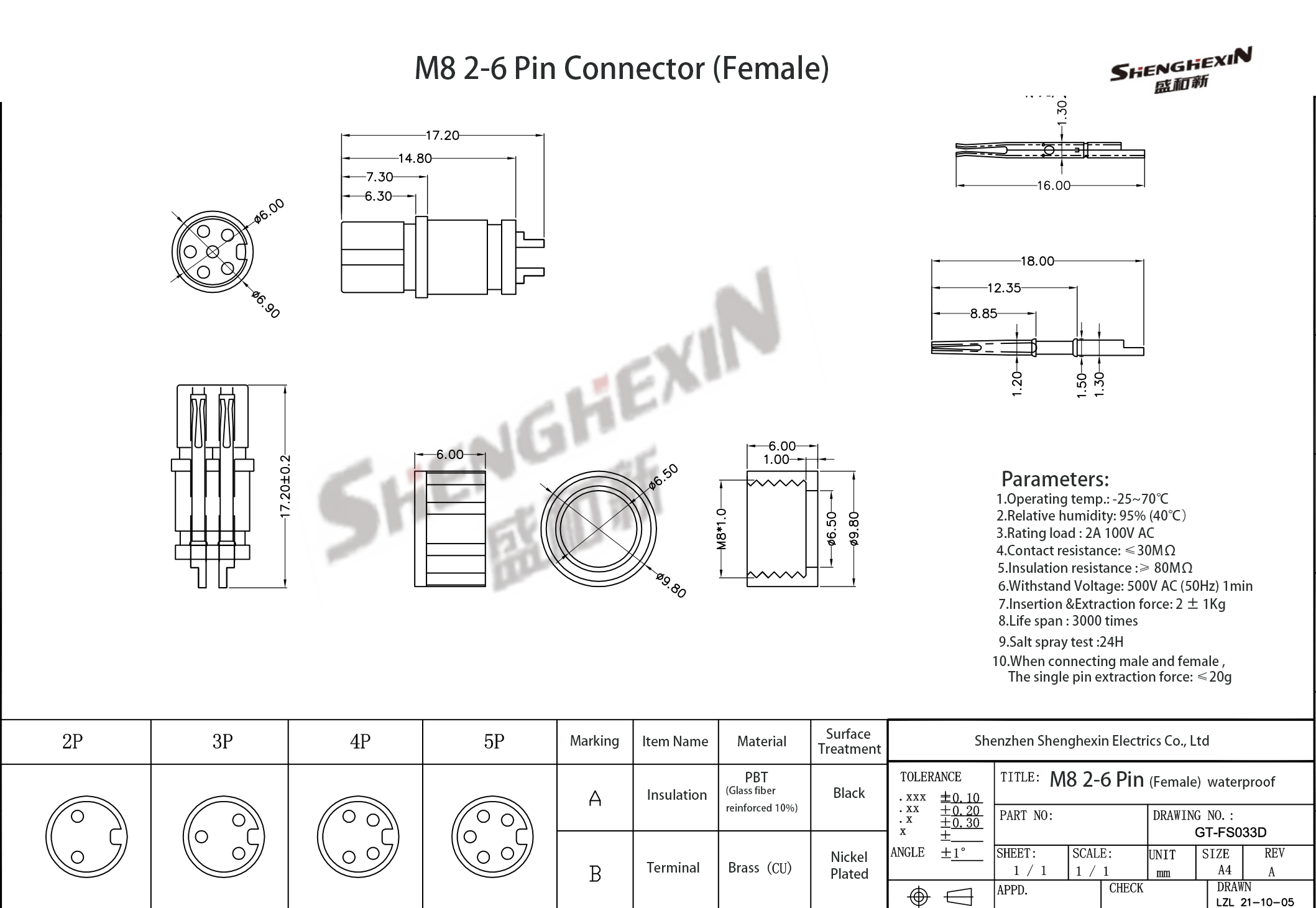

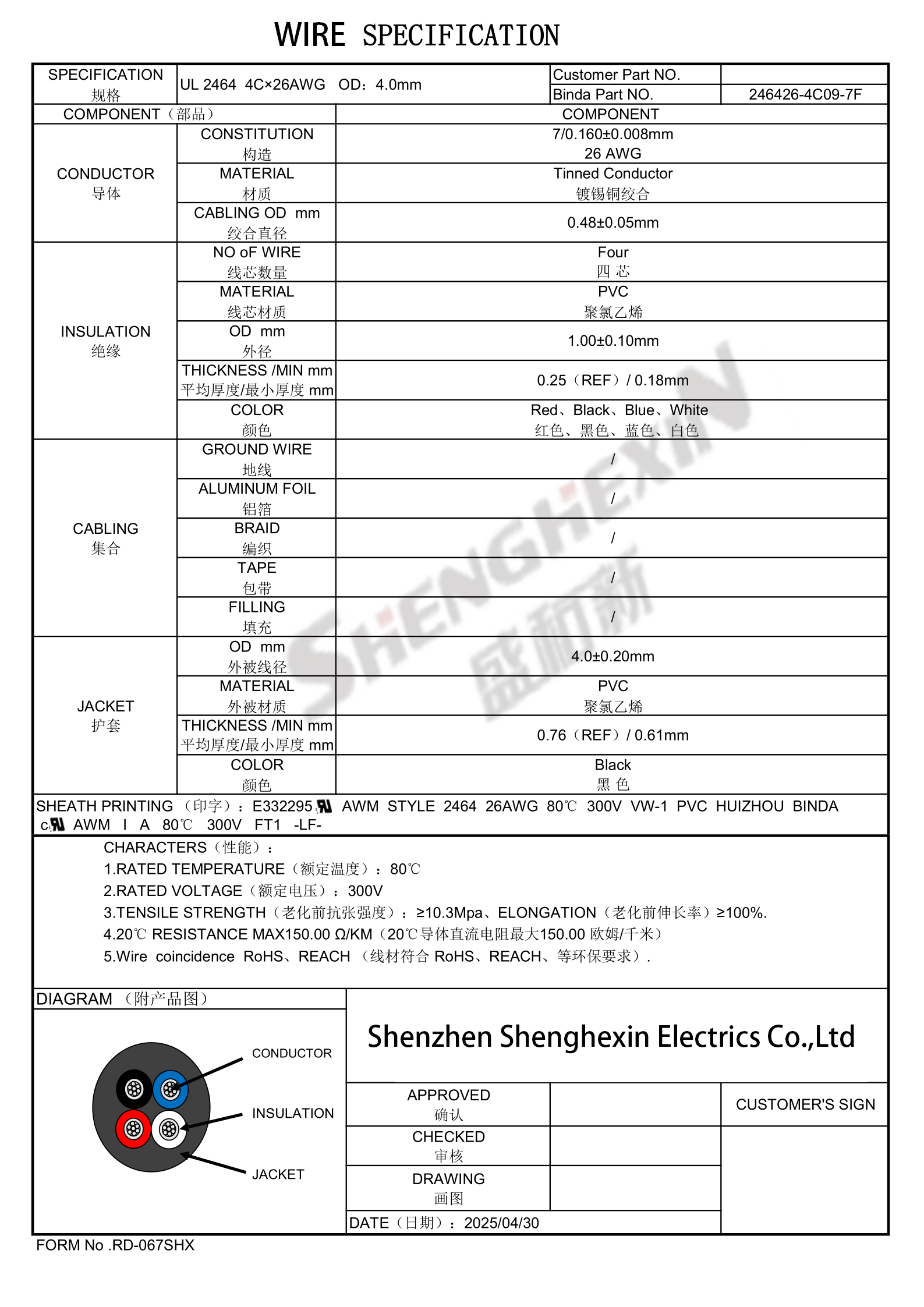

M8 detail page-1 M8 detail page-2 M8 detail page-3 M8 detail page-4

二.M12 Connectors

 M12 Detail page-1 M12 detail page-2 M12 detail page-3 M12 detail page-4

二.M16 Connectors

M16 Detial page-1 M16 Detial page-2 M16 Detial page-3 Wire drawing Application
